Classic Model | Eco-Smart Series

Rs.12,500.00
SALE % OFF
  • 30Watt
  • Eco-Smart
  • rf remote

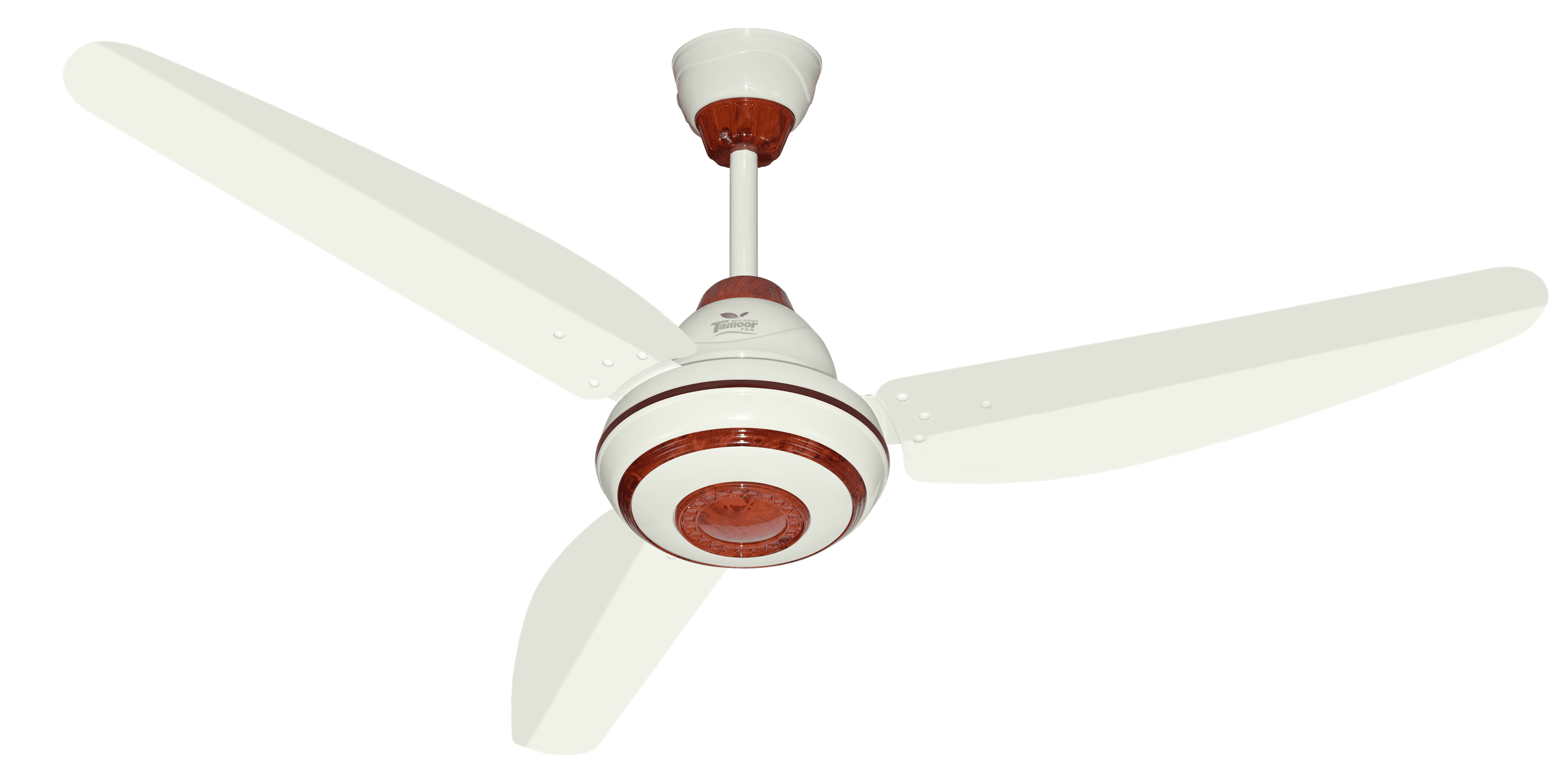

Classic Model Eco-Smart 30 Watt Fan Pakistan's first IoT-enabled fan. Experience unprecedented control and convenience from anywhere through your smartphone.

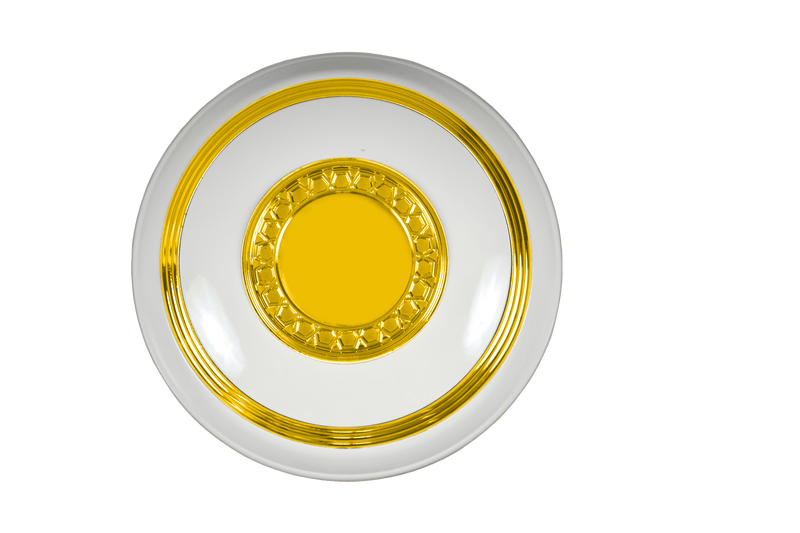

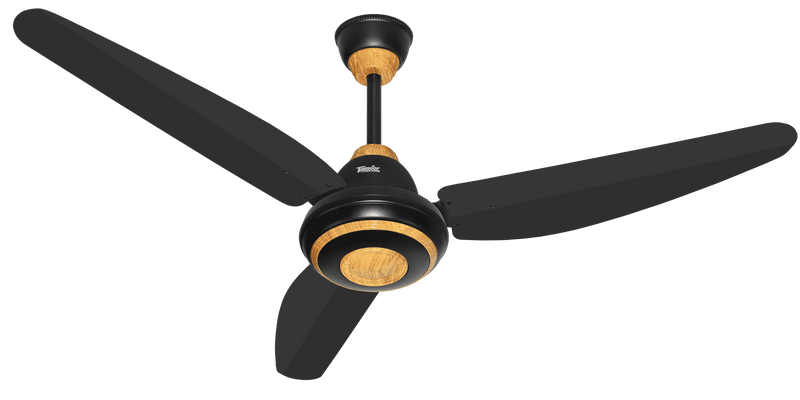

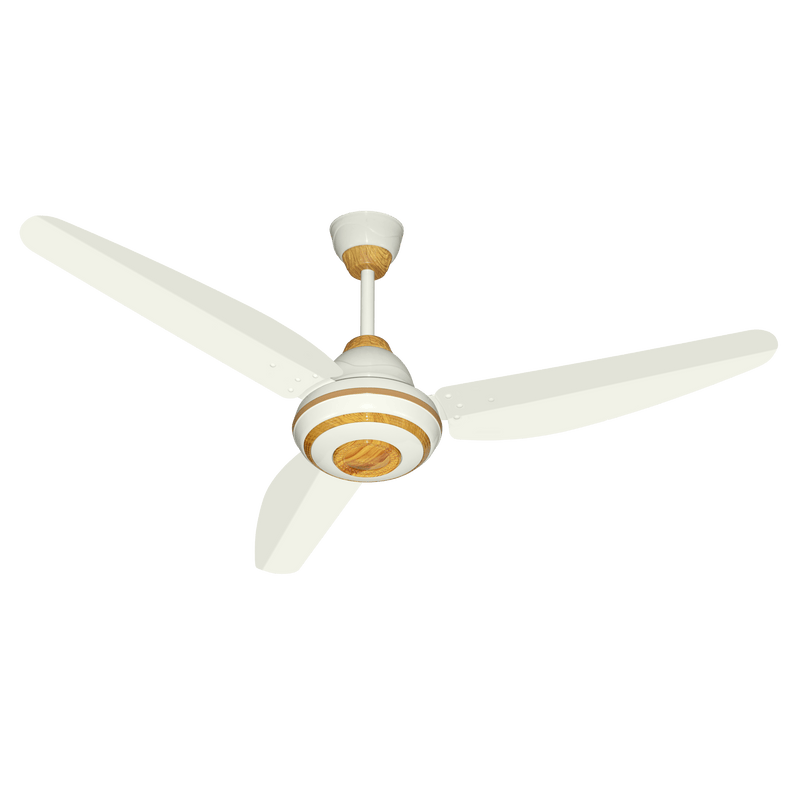

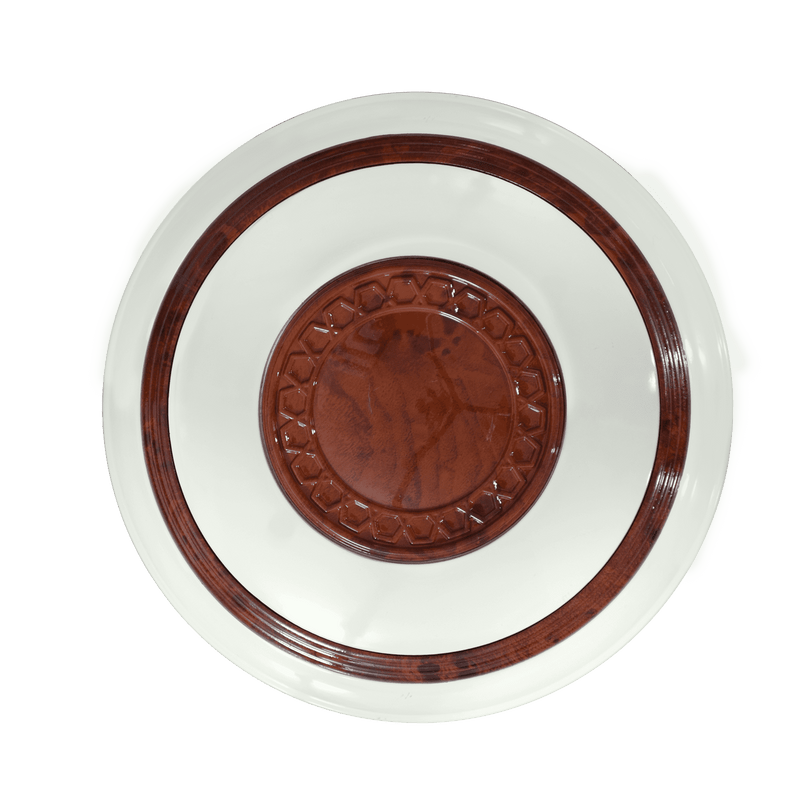

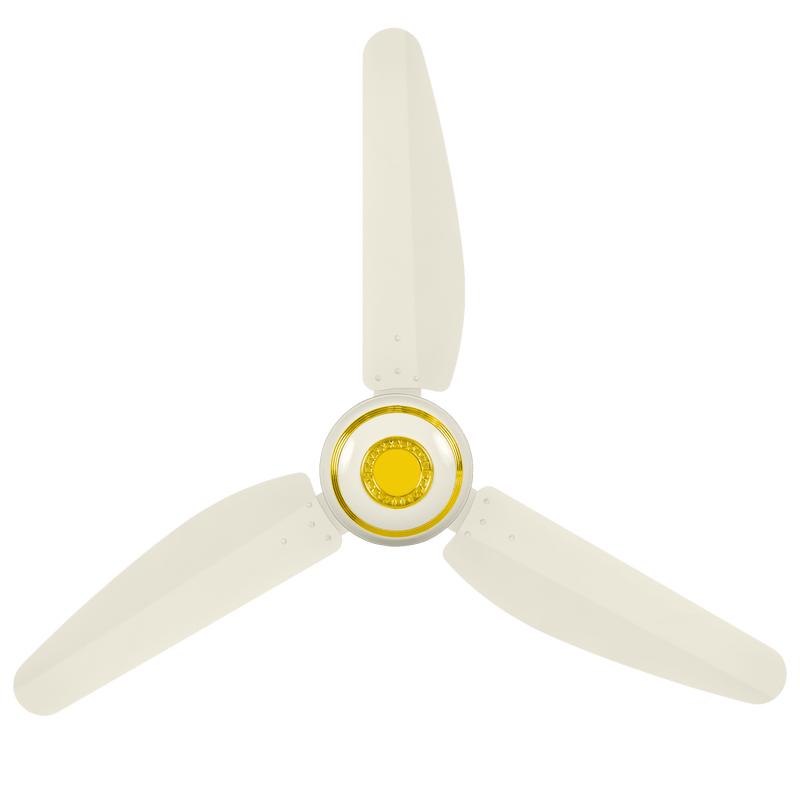

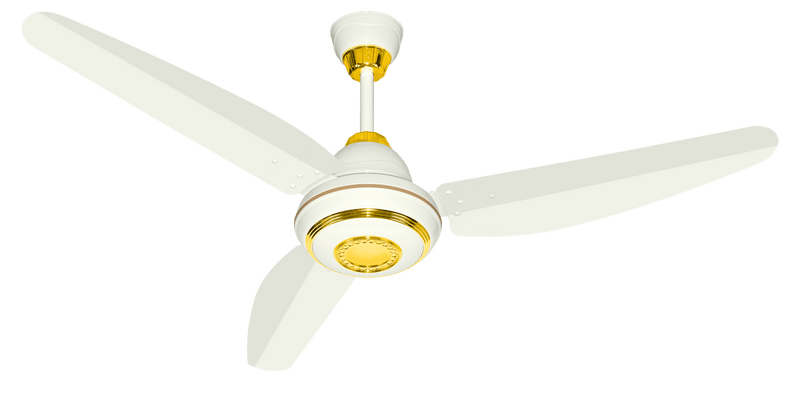

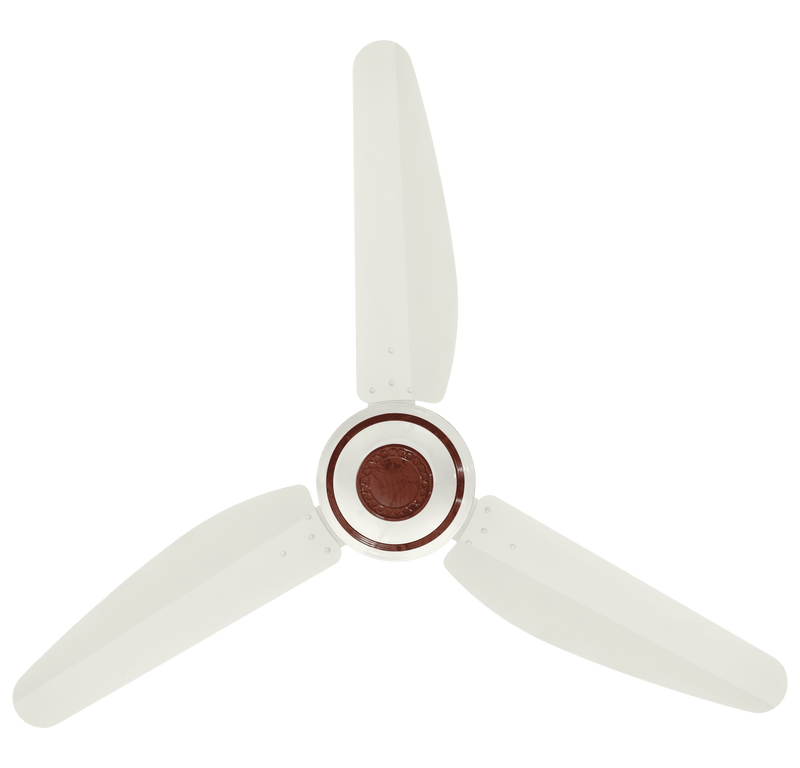

Color
Size

This is what makes us stand out from the competition

  • Specification

  • FeaTUReS

  • Installation Guide

  • How to Connect

  • Product Warranty

  • Reviews

  • Size Available: 56"
  • Motor Type: PMSM
  • Input Voltage AC: 90V-290V
  • RPM: 360≤
  • Power: 30 Watt
  • Speed Control: 6 Speed Remote & Wifi Controlled
  • Power Factor: 0.99
  • Blades: 3 Blades
  • Speed: 6 Speed
  • Remote: RF(Radio Frequency)
  • RF (Radio Frequency with timer Function 1h- 6h)
  • Size Available: 36’& 48′ & 56′.
  • Blades: 3 Blades.
  • Speed: 5 Speed.
  • Rated Power on AC: 5-30 Watts.
  • Input Voltage AC: 140-240v.
  • Rated Cycles 50.
  • RPMs: ≤ 350.
  • Power Factor 0.95.
  • Remote Control (RF).
  • RF (Radio Frequency with timer function 1h-6h).

WARNING:

BE SURE TO TURN OFF THE ELECTRICAL SUPPLY AT THE CIRCUIT BREAKER BEFORE INSTALLATION.

INSTALLATION MUST BE DONE BY A QUALIFIED ELECTRICIAN ONLY.

DO NOT ATTEMPT TO INSTALL THE UNIT YOURSELF.

DO NOT USE WITH A DIMMER. ( IMPORTANT: using with a dimmer will void the warranty )



CAUTION:

Improper installation may result in a risk of fire, electrical shock, or injury to persons.
Be sure the fan is to be connected to the grounded outlet box.
It’s ESSENTIAL that blades be NO LESS THAN 2.3 meters from the floor and that adequate clearance exists between the fan and adjacent walls, furnishings, etc.
If the fan is operating abnormally, cut the power off immediately for inspection.
T indicates suitable for tropical climates.
Ta-Ambient temperature 45 C.
Children should be supervised to ensure that they do not play with the appliances.


CLEANING:

Disconnect the electrical supply for safety purposes. Use a cloth with a neutral cleaning agent to clean the fan. Then wipe it with a dry cloth. DO NOT IMMERSE THE MOTORHEAD IN WATER.

Remote Paring Guide for Eco Smart30 Watt Fans:

  • Turn on fan
  • As soon as you turn on the fan press pair button
  • Hold the button for 10-15 sec
  • You will hear the beep sound
  • Your fan has been paired with your remote.

Inverter fan motors are covered by a 2-years repair warranty starting from the purchase date, subject to specific terms

Exclusions:

  • The repair warranty does not extend to damages from accidents, attempted repairs, negligence, or customer mishandling.
  • Motor burnout due to voltage fluctuations or water seepage (except waterproof ceiling fans) is not included.
  • Correct Motor Controller connections as per manual instructions are necessary.
  • Repair Warranty becomes void if Motor Controller sustains damage from being connected to a dimme sustains damage from being connected to a dimmer.
  • Warranty does not encompass breakage of parts.
  • Components of fans, including remotes and Motor Controller, have a 1-year repair warranty from the purchase date.
  • To the make a authorized repair dealer. warranty claim, the warranty card must be completed, signed, and stamped by the authorized dealer.
  • Warranty card alterations, such as cutting or overwriting, will not be accepted.
  • In cases not covered by the repair warranty, service and replacement charges will be applied.
  • Replacement for non-repairable manufacturing faults necessitates approval from the authorized service provider.
  • The company is not accountable for indirect, incidental, or consequential damages arising from the usage of Tamoor Fan products
  • Replacement Warranty is valid for 10 Days only from the date of purchase after that product will not be replaced instead charges will be applied for any components repair and replacements.
